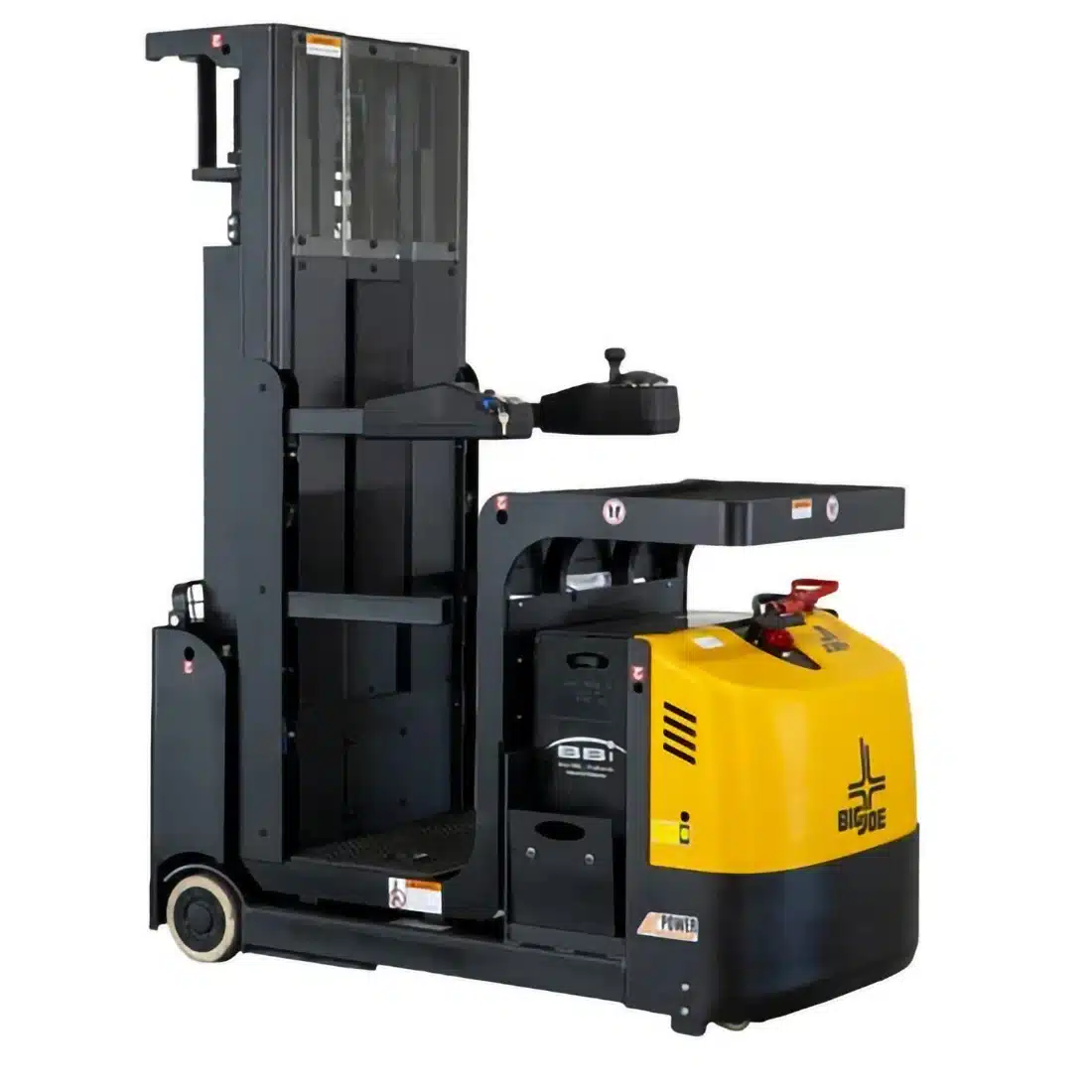

J1 Joey
Task Support Vehicle
The J1 “JOEY” Task Support Vehicle combines attributes of elevating work platforms, order pickers and tuggers in a compact vehicle design.
Developed as an alternative to rolling ladders or other larger equipment, the Joey can support tasks from general overhead maintenance to order picking.
| Vehicle Type | Task Support Vehicle |
|---|---|
| Maximum Capacity | 1000lbs. (500 front / 300 operator / 200 rear) |
| Power | 24 volt AC electric with Zapi transistor control |
| Max Lift Height | Operator platform raises to 126″ / 162″ / 192″ |
| Collapsed Height | 62.6″ / 82.75″ / 83.25″ |
| Vehicle Dimensions | See specification sheet |
| Battery Capacity | 224AH AGM pack / Industrial (req on J1-192) |
| Charger | Onboard 120vac/240vac single phase Standard & Integral 120v in pack / Industrial (req on J1-192) |
Product Highlights
- Up to a 1,000lb. total vehicle capacity including a carrying capacity of 500lb. front tray, 300lb. operator, 200lb rear tray*
- LCD dash display with selectable travel settings and diagnostics
- Electronic power steering with infinitely variable speed control
- Finger tip controls integrated into retractable vehicle guardrails
- Premium steel I-beam mast construction and unitized steel frame
- 180 degree articulating driveline with 72″ minimum turn radius
*Consult factory for capacity derate information on J1-162 and J1-192
