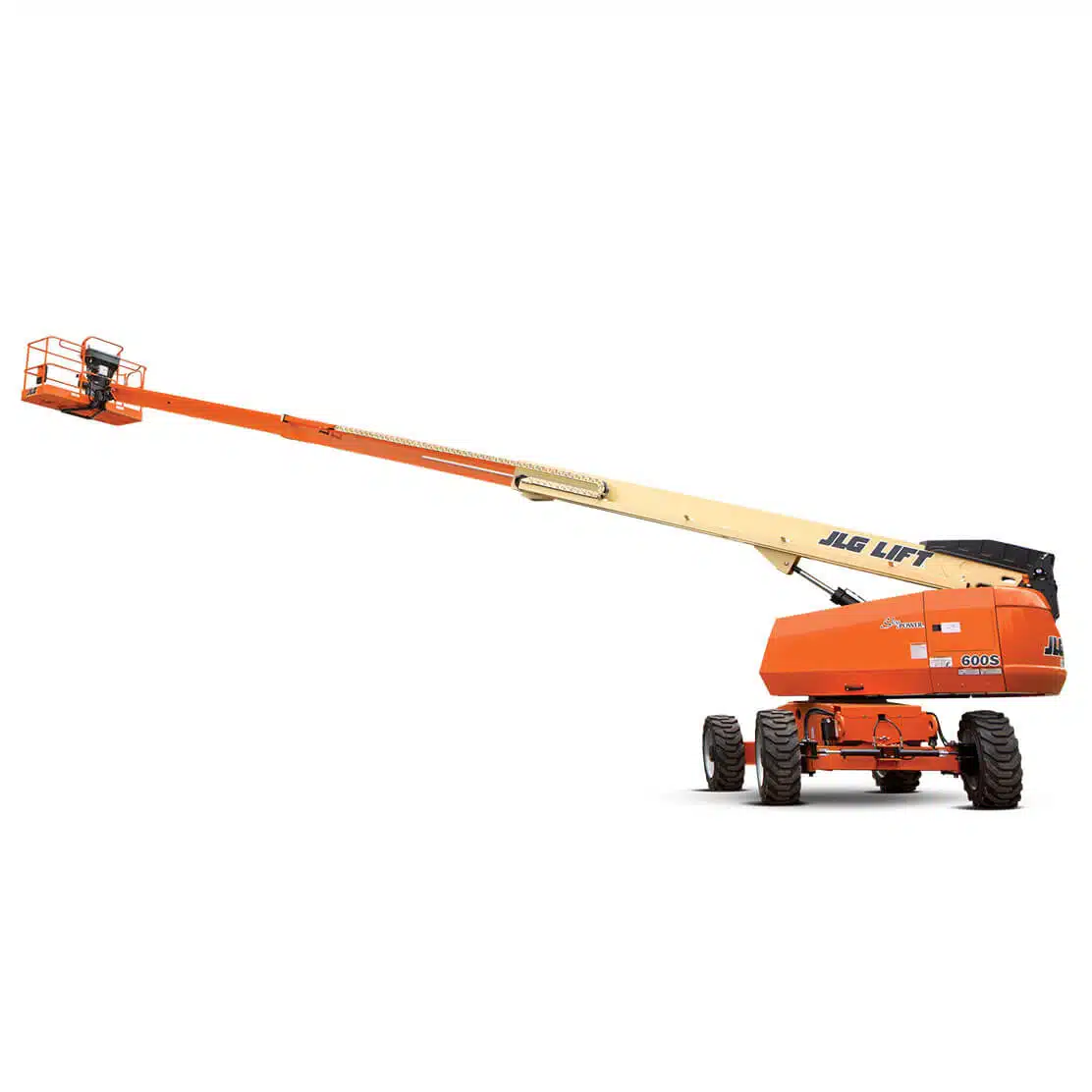

JLG Telescopic Boom Lifts
High Reach When The Site Is Tight
JLG® engine powered telescopic boom lifts take you right where you need to work. Ideal for working around different angles on crowded work sites. Available in a range of sizes to provide the best height and capacity for your job.
| Max Horizontal Reach | 36ft 6in–185ft 7in |
|---|---|
| Width | 33ft–80ft |
| Platform Capacity | 7ft 4in–8ft 2in |
| Overhead Guard Height | 500 lbs–1,000 lbs |
Request a Quote
Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.
| Model Number |
Working Height | Max Horizontal Reach | Width | Platform Capacity | EC600SJ | 60ft 3in | 43ft 3in | 7ft 11in | 500 lbs |
|---|---|---|---|---|
| H600SJ | 60ft 3in | 43ft 3in | 7ft 11in | 500 lbs |
| EC600SJP | 60ft 4in | 44ft 5in | 7ft 11in | 500 lbs | H600SJP | 60ft 4in | 44ft 5in | 7ft 11in | 500 lbs |
| 400S | 40ft | 33ft 6in | 7ft 6in | 600 lbs Unrestricted, 1,000 lbs Restricted |
| 460SJ | 46ft | 39ft | 7ft 6in | 600 lbs |
| 400SC | 36ft 6in | 33ft | 7ft 4in | 600 lbs Unrestricted, 1,000 lbs Restricted |
| 460SJC | 45ft 6in | 39ft | 7ft 4in | 600 lbs |
| 600S | 59ft 8in | 50ft 2in | 8ft 2in | 600 lbs Unrestricted, 1,000 lbs Restricted |
| 660SJ | 65ft 8in | 57ft 1in | 8ft 2in | 550 lbs Unrestricted, 750 lbs Restricted |
| 660SJC | 65ft 7in | 57ft 1in | 8ft 2in | 550 lbs Unrestricted, 750 lbs Restricted |
| 800S | 80ft | 71ft | 8ft 2in | 500 lbs Unrestricted, 1,000 lbs Restricted |
| 860S | 86ft | 75ft | 8ft 2in | 500 lbs Unrestricted, 1,000 lbs Restricted |
| 1200SJP | 120ft | 75ft | 8ft 2in | 500 lbs Unrestricted, 1,000 lbs Restricted |
| 1350SJP | 135ft | 80ft | 8ft 2in | 500 lbs Unrestricted, 1,000 lbs Restricted |
| 1500SJP | 150ft | 80ft | 8ft 2in | 500 lbs Unrestricted, 1,000 lbs Restricted |
| 1850SJP | 185ft 7in | 80ft | 8ft 2in | 500 lbs Unrestricted, 1,000 lbs Restricted |
