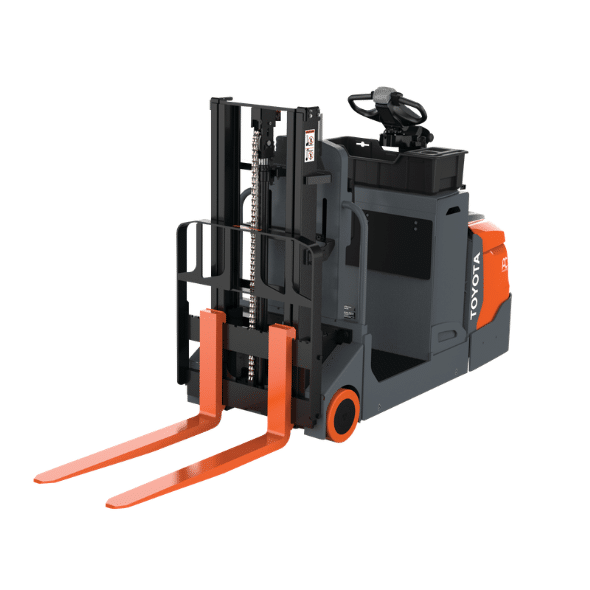

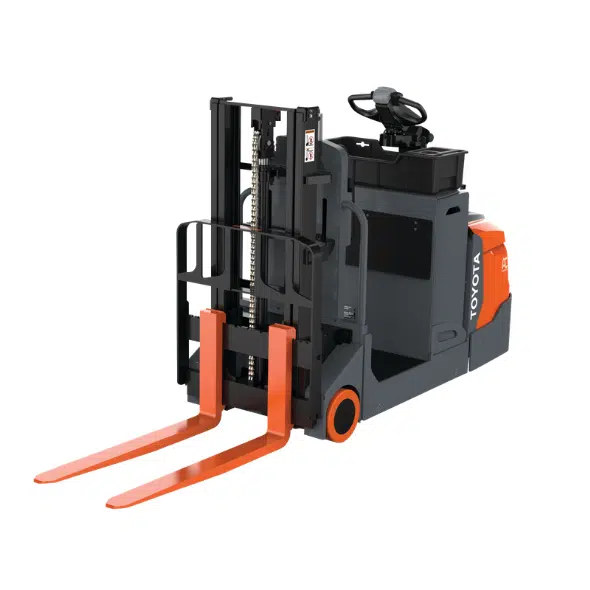

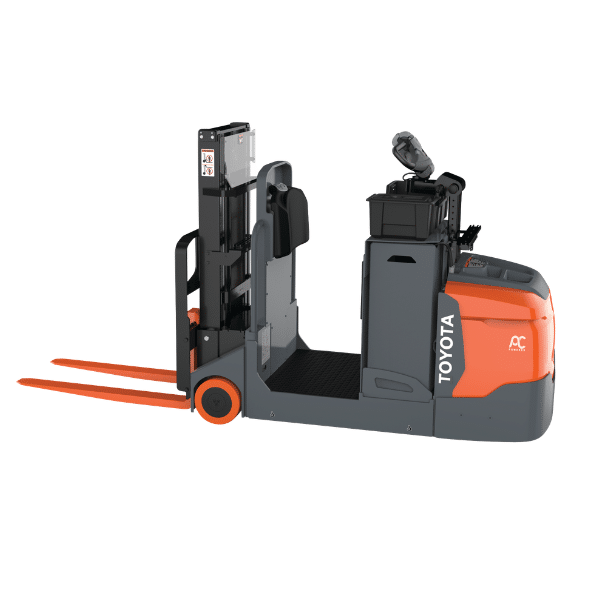

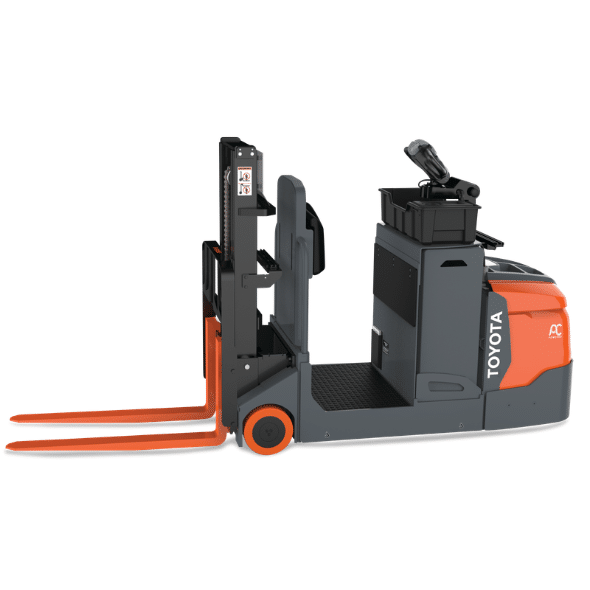

Low-level picking. Dock work. Narrow-aisle stacking. The Center Rider Stacker handles all of these and more. The versatile design enables it to perform the work of a center rider, order picker, and counterbalanced forklift – all in one. This delivers the ultimate utility and value in operations where it can replace some or all existing equipment.
Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.
Model Number
Load Capacity* (lbs)
Max Travel Speed Full Load (mph)
Max Lift Speed Full Load (fpm)
Max Gradeability Full Load (%)
Max Lift Height (in.)
CR1-RS25
2,500
6
22
8
72
* Based on 24″ Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.
Performance
24-Volt electrical system
AC drive motor with thermal protection & current limiting
Class “F” motor insulation
Transistor drive control system
Controller area network (CAN-bus) communication
Regenerative braking
Contactor-less drive controls
Ease of Service
One-piece High-Strength Service Cover
Error Indicator with Self-Diagnostics
Bolt-On Mast Mounting
Programmable Performance
Programmable Service Indicator
Battery Compartment: 27.3″L x 7.8″W x Open Height
Safety
Battery discharge indicator & correction with lift interrupt
Electric horn
Rugged, all-steel frame construction
Heavy duty bumpers
Emergency power disconnect switch
Safety glass mast guard
Ergonomics
Multifunction Control Handle with Ergonomically-Angled Hand Grips
