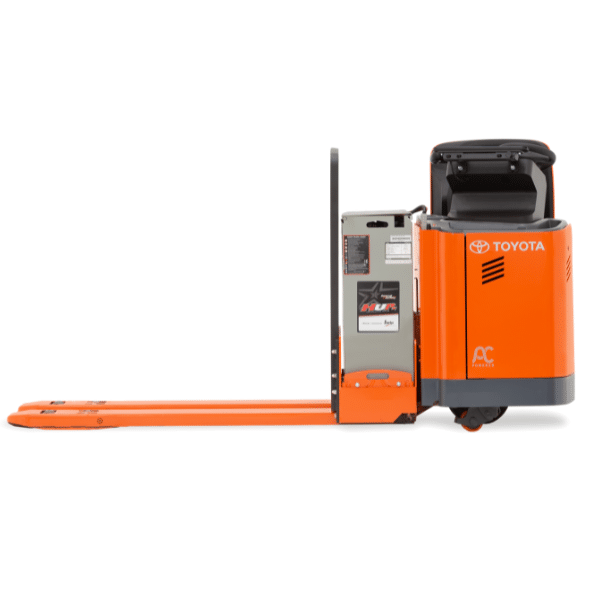

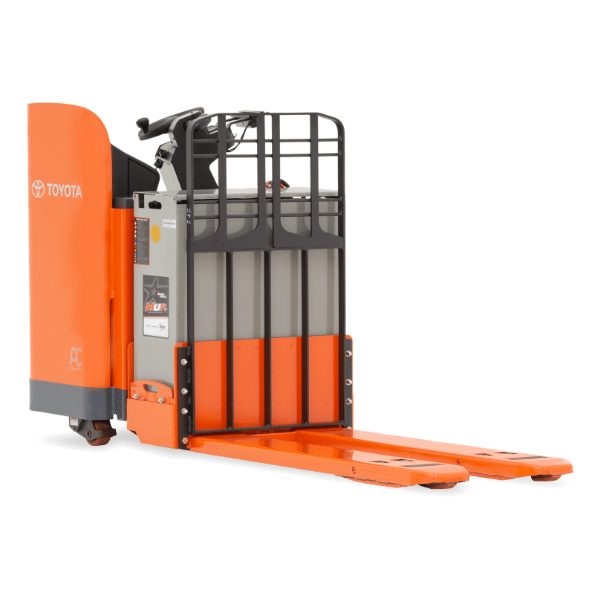

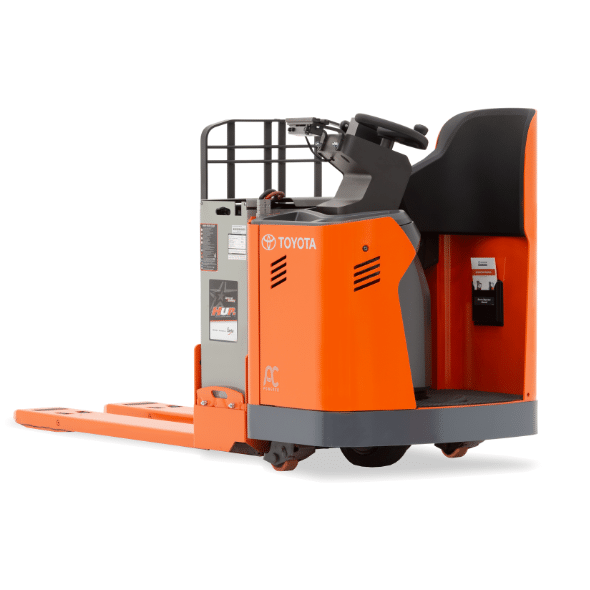

Toyota’s Enclosed End Rider makes traveling through your warehouse while loading and unloading products simple and easy. This Enclosed End Rider is the pallet-moving secret to productivity, efficiency, and uptime that you’ve been looking for. Designed with a steel-enforced undercarriage and stainless pins for reinforced strength to handle the heaviest of loads, the Enclosed End Rider is the perfect lift for delivering an impeccable performance so you can get the job done.
Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.
Model Number
Load Capacity* (lbs)
Max Travel Speed Full Load (mph)
Length (in.)
Max Gradeability Full Load (%)
Basic Right Angle Stack** (in.)
ER1-ES60
6,000
6.2
81.5 – 148.8
8
80.7 – 184.4
ER1-ES80
8,000
6.5
82 – 148.8
8
80.7 – 184.4
* Based on 24″ Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.
Safety
Stability handrail with lift, lower, horn and high-speed functions
Wrap-around hand guard
Spring-loaded control handle
Runaway protection
Directional reverse switch on control handle
Electric horn
Ergonomics
Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
Dual thumb wheels with twist grips for directional control and travel speed
Intuitively positioned lift/lower and horn buttons (horn button on 8TB50 Only)
