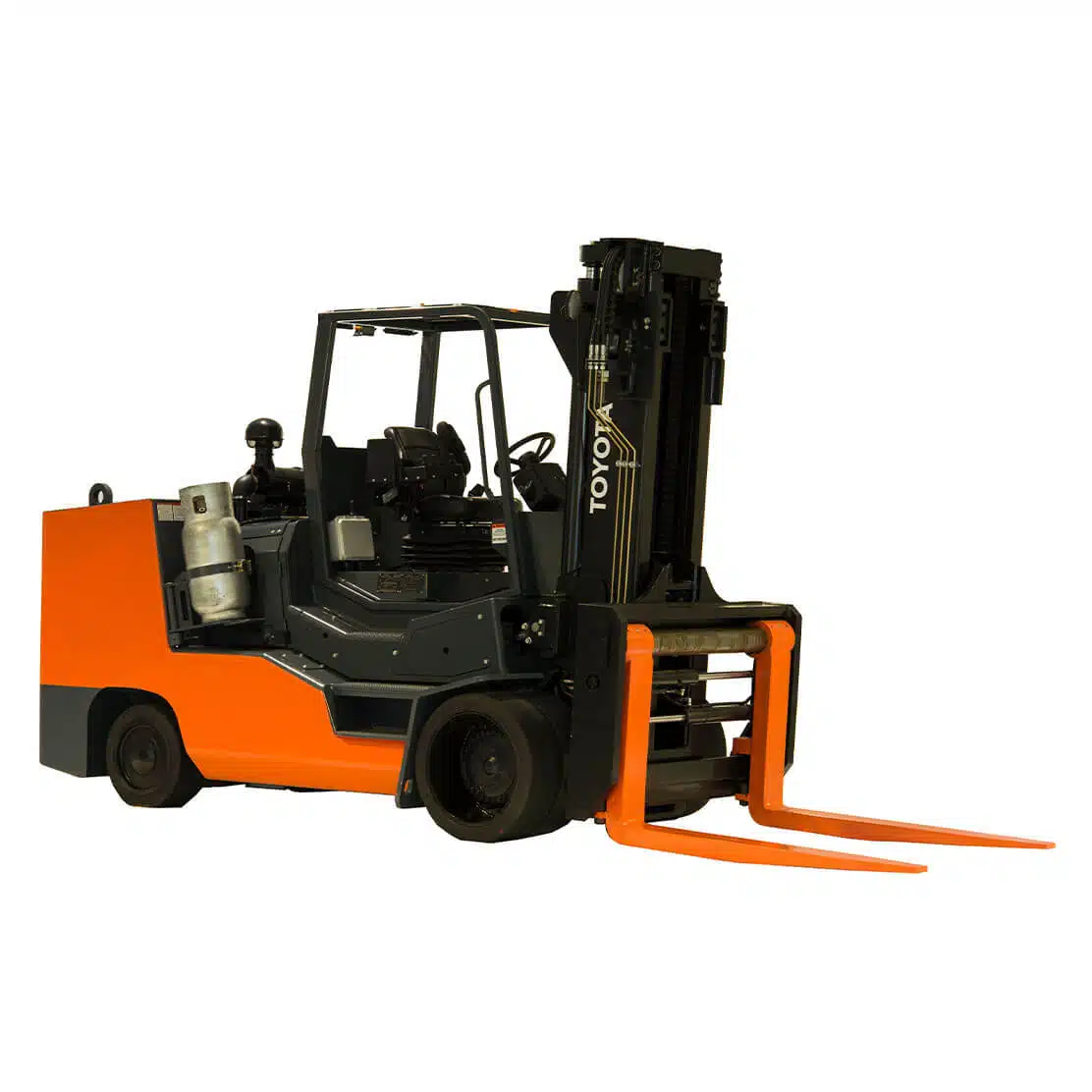

High-Capacity Large Cushion Forklift

The Gentle Giant

Not all heavy-duty jobs happen outdoors — and we know that. That’s where the Toyota High-Capacity Large Cushion Forklift comes in handy. With one of the leading engines in its class, this indoor mammoth is ideal for automotive environments and moving steel inside manufacturing facilities.

Load Capacity 25,000 – 100,000 lbs.
Travel Speed 9.7 – 10.3 MPH
Transmission 5.7 L V8 Engine
Length to Forkface 136 – 184”
Overhead Guard Height 103.6 – 118.8″
Overall Width 62 – 85.5”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
THDC2500-24 25,000 9.7 61 73.7 167
ТНОС2500-З0 25,000 9.7 61 69.9 167.1
THDC3000-24 30,000 9.7 61 67.1 167
THCDC3000-30 30,000 9.7 61 64.7 174
THDC3000-36 30,000 9.7 58 61.2 174.3
THDC3500-24 35,000 9.7 58 62.9 174.3
THDC4000-30 40,000 9.7 41 49.8 184.2
THDC4000-36 40,000 9.7 41 47.4 186
THDC4500-30 45,000 9.7 41 46.6 186
THDC4500-36 45,000 10.3 20 35.3 217.5
THDC5000-30 50,000 10.3 20 34.7 217
THDC5000-36 50,000 10.3 20 33.3 217.5
THDC5500-36 55,000 10.3 20 31.5 217.5

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance Icon Performance - High-Capacity Large Cushion Forklift - Shoppa's Material Handling

  • PSI 5.7L V8 engine (LP)
  • Dana model 32000 transmission
    • 3FWD/3REV speed automatic
    • True inching system
    • Integral cooling pump (dedicated)
    • Remote mounted filter
    • 12 plate modulation
  • 2-function hydraulic control valve (lift/tilt)
  • Independent brake & inching pedals
  • Full hydraulic power steering
  • Warning light for parking brake (Release)
  • Lift and lashing points
  • Illuminated digital instrument display

Ease of Service Icon Service - High-Capacity Large Cushion Forklift - Shoppa's Material Handling

  • Left, right, and floorboard service panels
  • Hydraulic multi-gauge
  • In-cab electrical box
  • Side plate access drive train

Safety Icon Safety - High-Capacity Large Cushion Forklift - Shoppa's Material Handling

  • Asbestos-free components
  • Neutral safety switch
  • Operator Restraint System
  • Operator Presence Sensing System (OPSS)

Ergonomics Icon Ergonomics - High-Capacity Large Cushion Forklift - Shoppa's Material Handling

  • Finger-tip hydraulic controls
  • Tilt steering column
  • 2 ¾ turn lock-to-lock steering wheel
  • Left hand shift lever
  • Low-height, non-skid steps
