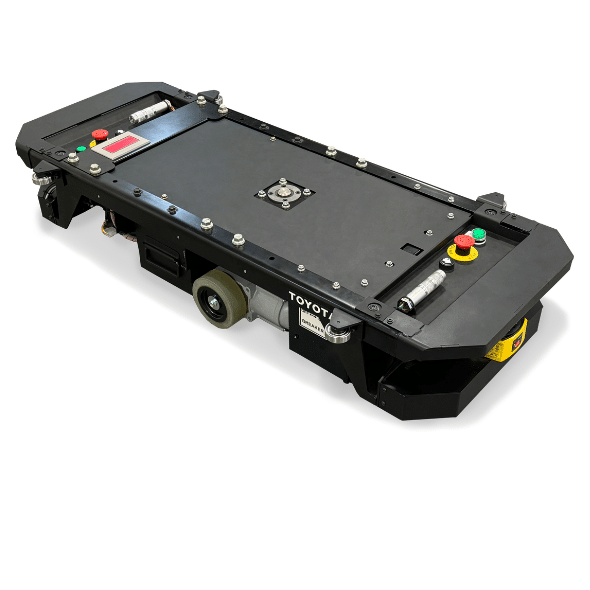

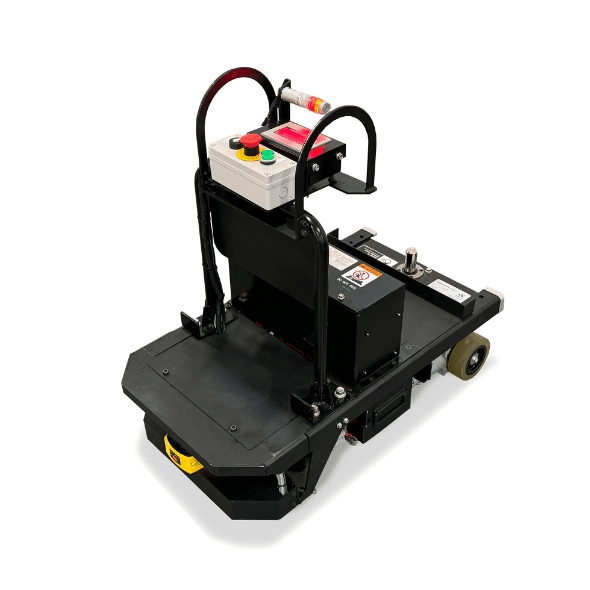

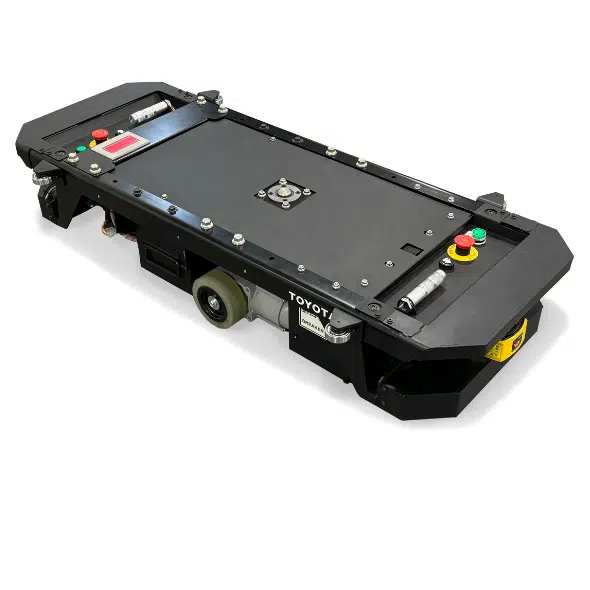

Toyota’s Key Cart Automated Guided Vehicle (AGV) is an entry-level unit, offering a simple automated solution for a variety of tasks at a budget-friendly price point. Utilizing Microsoft® Excel for route programming and fleet management provides a user-friendly AGV solution with seamless deployment. With two form factors available, a towing and direct load unit and a tow-only unit, users can select the most suitable option based on individual work environments, enhancing adaptability and efficiency in task execution
Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.
Model Number
Load Capacity* (lbs)
Max Travel Speed Full Load (mph)
Max Gradeability Full Load (%)
Enviroment (Primary Location)
Battery Voltage (V)
ATBSO5
1,100
1.6
N/A
Indoor
24
ATBEO5
1,100
1.6
N/A
Indoor
24
* Based on 24″ Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.
Performance
AC drive motor with thermal protection & current limiting
24-Volt electrical system
Fault code memory with hour meter reading
Regenerative braking
Programmable performance
Adjustable maximum speed
Adjustable acceleration
On/off key switch
Multiple hour meter indicator
Battery discharge indicator
Fused control & power circuits
Ease of Service
AC drive motor (no brushes or commutator)
One-piece, lightweight service access cover
Error indicator with self-diagnostics
Self-adjusting electric disc brake
Safety
Wrap-around hand guard
Control handle with dual brake levers
Polyurethane torsion block stabilizing casters
Electronic horn
Ergonomics
Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
Dual thumbwheels with twist grips for directional control & travel speed
Intuitively positioned lift/lower & horn buttons
Adjustable height control handle (3-position); dual hand brake levers
Low-effort control handle
High-speed interlock button
Bubble-cushioned operator floor mat, padded backrest & knee pad
