LVE35
Integrated lithium-ion provides simplicity and reduces cost.

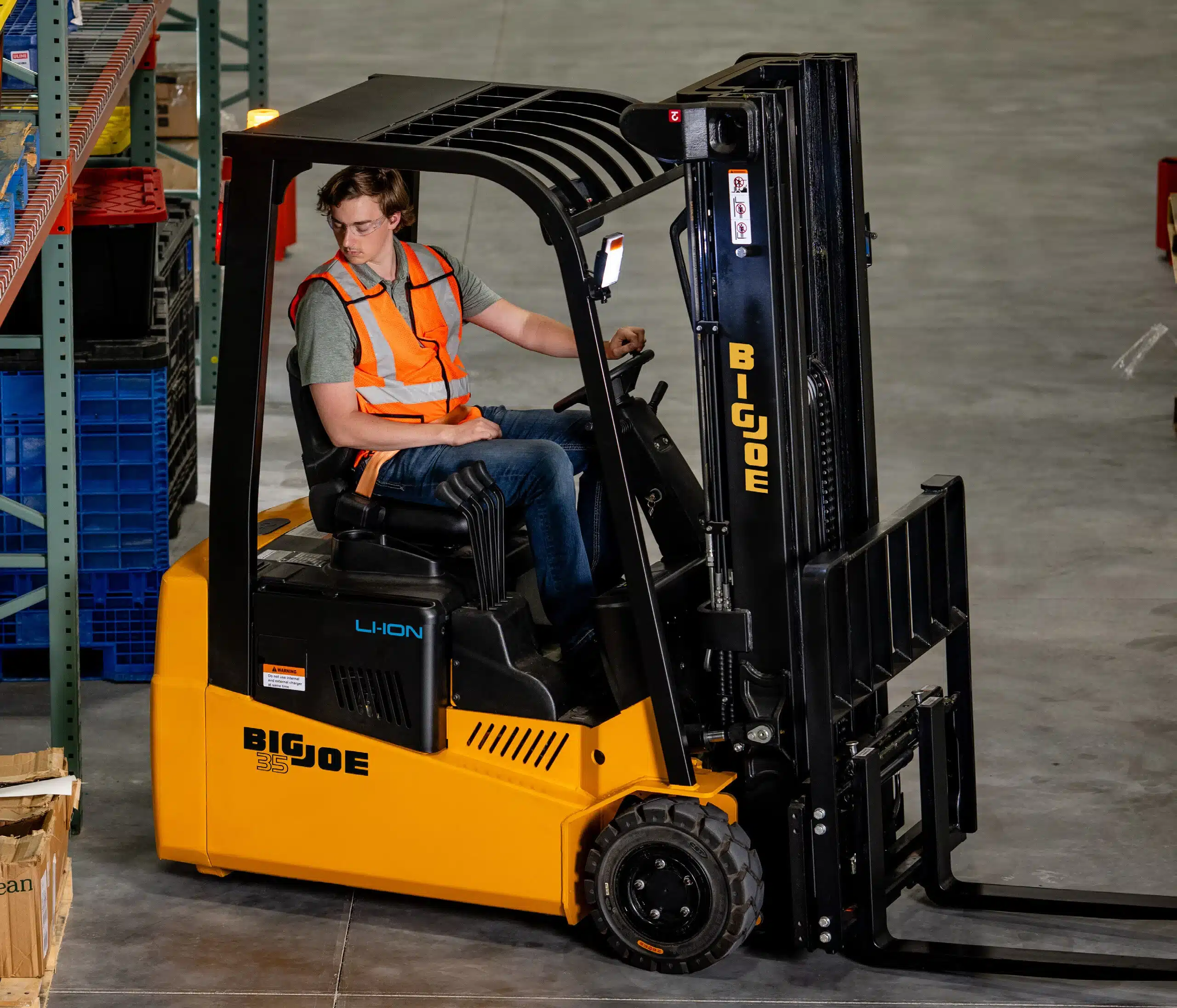

3,500 lb. Capacity Integrated Lithium-Ion Three-Wheel Pneumatic Electric Forklift
| Capacity at 24in. Load Center | 3,500 lbs. |
|---|---|
| Battery Size | 18.4kWh |
| Electrical System | 36/48V |
| Overhead Guard Height (in.) | 81.8 |
| Overall Width (in.) | 43.3 |
| Right Angle Stack (in.) | 128.6 |
| Max Travel Speed (mph) | 8.7 |
| Max Lift Speed (ft/min.) | 88.6 |
Product Highlights
- UL-Recognized Integrated Lithium-ion 18.4kWh Battery
- Telemetry Monitoring System with Over-the-Air Updating

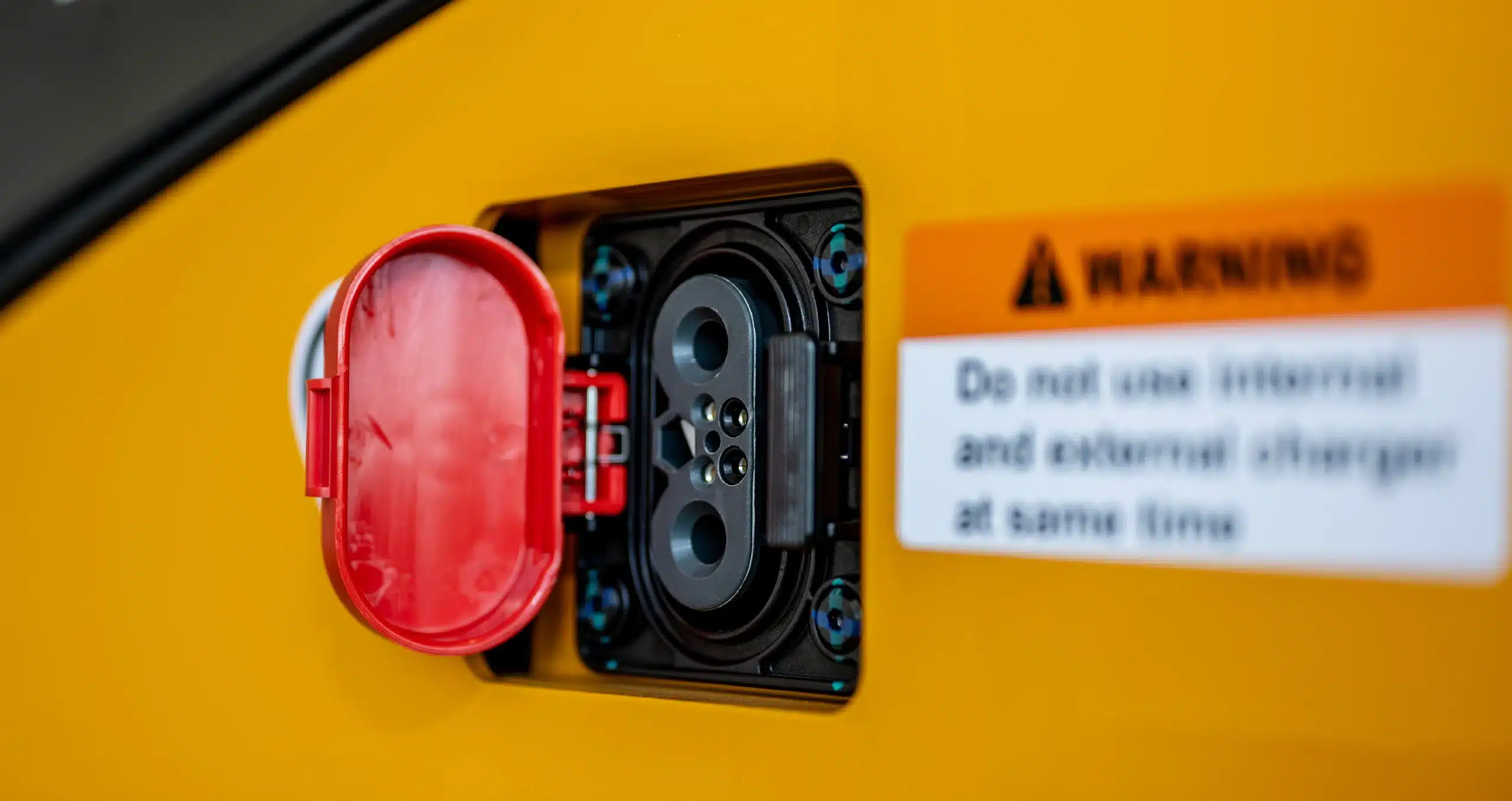

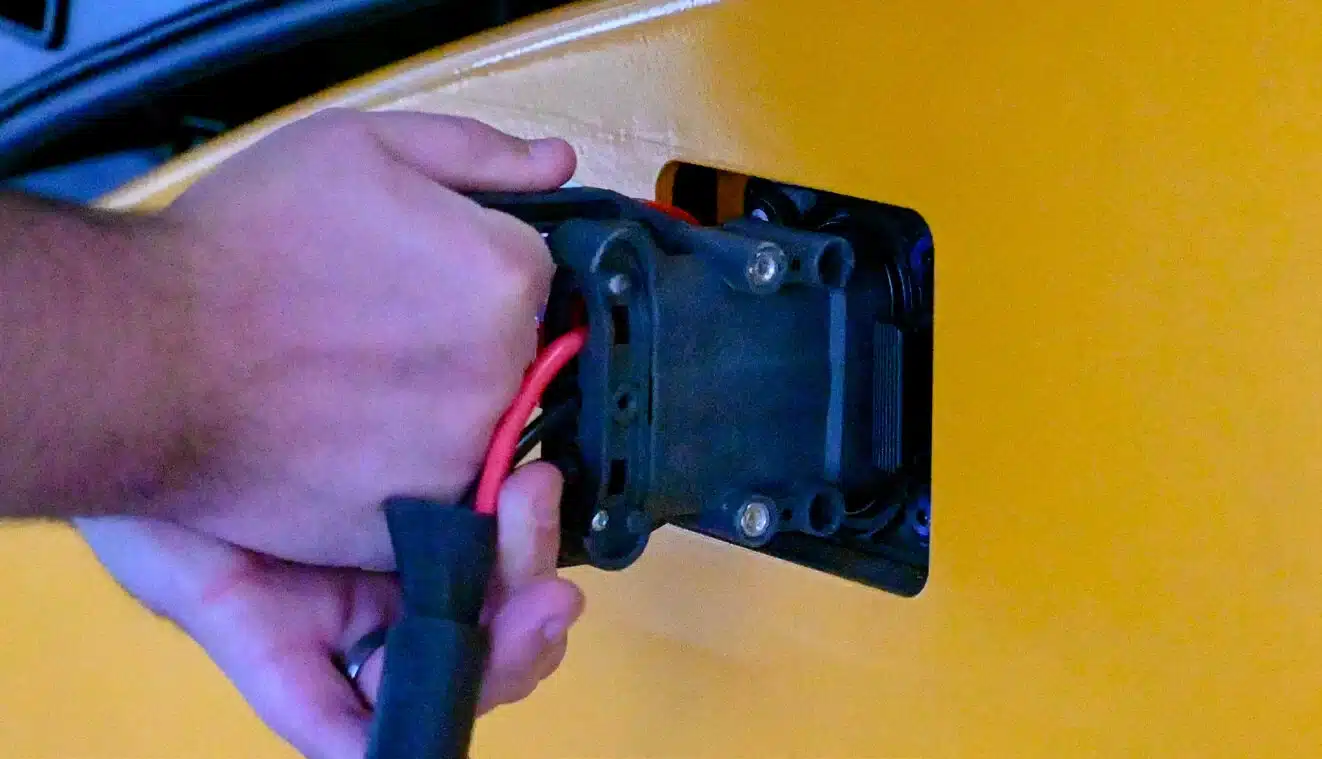

- Onboard 120/240VAC Battery Charger with Power Cords
- Dual AC Drive Motors with Zero Turn Radius
- Wet Disc Service Brakes

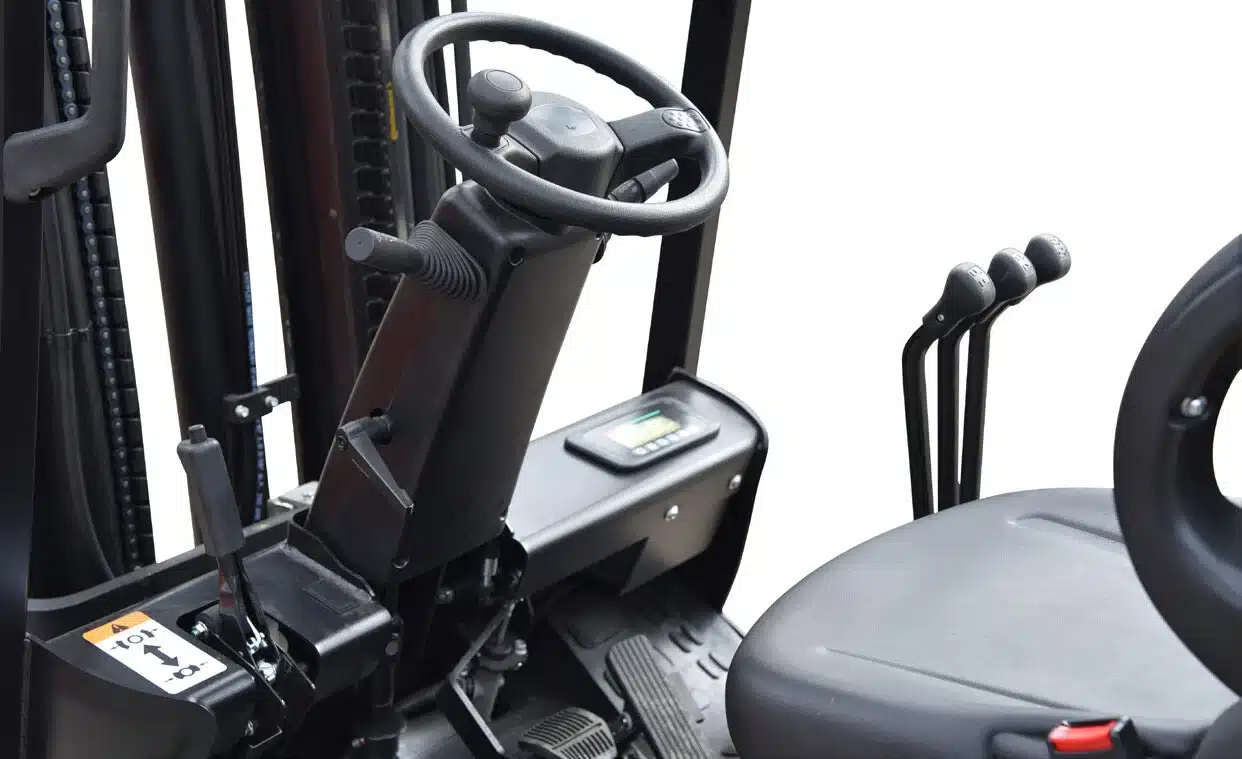

- Low Dash for Excellent Visibility
Integrated Lithium: Simple and Effective
The UL-recognized Lithium-ion battery is designed and manufactured by Big Joe, in our state-of-the-art, automated facility to deliver the highest levels of quality, durability and reliability. The battery pairs seamlessly with the truck, requiring no additional displays, connection ports, power buttons or other complications. Simply buckle up, turn the key, release the parking brake and go.
Advanced Electrical System
Big Joe AC controller technology delivers high performance efficiently while significantly reducing maintenance costs and extending the vehicle’s service life. The battery management system continuously monitors performance during operation and charging to optimize the battery’s service life.
A Drivetrain for High Productivity and Low Operating Cost
Dual AC drive motors enable LVE35 to pivot on its own center, which supports operation in tight spaces. Transistor motor controllers deliver smooth control for handling large or delicate loads. In addition to regenerative braking, LVE35 features maintenance-free wet disc brakes for confident stopping power.
