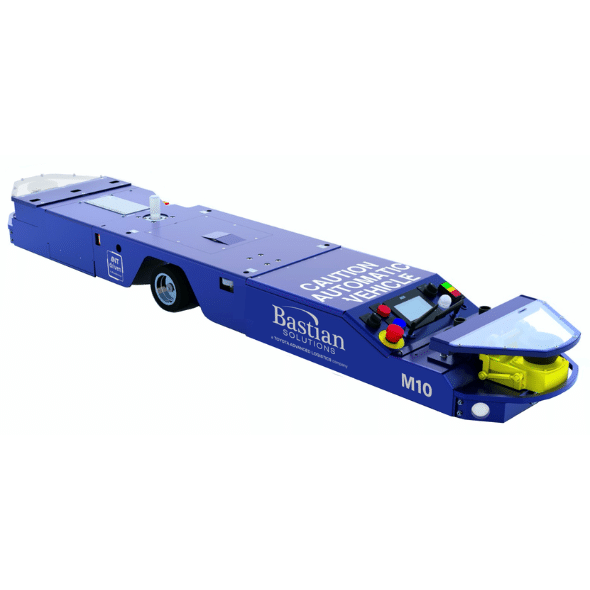

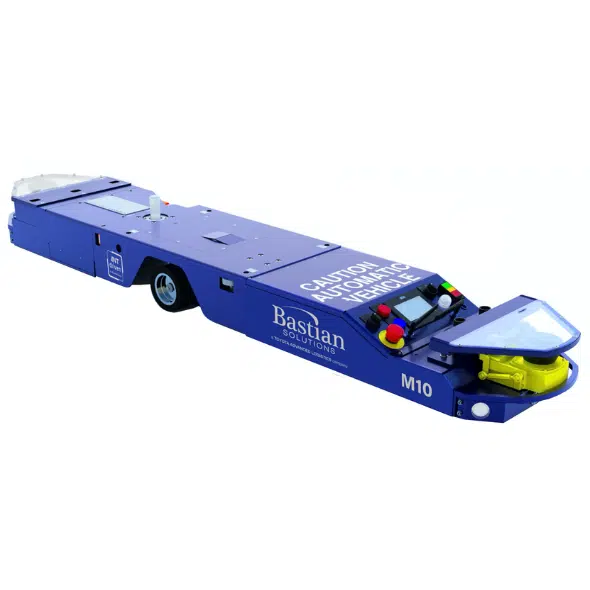

The M10 Tug AV (autonomous vehicle) is the flexible automated solution you need to optimize your manufacturing applications. With a weight capacity of up to 2,200 lbs. and a 4-inch turn radius for exceptional maneuverability in small spaces, this autonomous vehicle is tailored to meet your operation’s evolving needs. Additionally, this solution can carefully and efficiently navigate forklift traffic and pedestrians, keeping you productive and on the move.
Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.
Model Number
Load Capacity* (lbs)
Max Travel Speed Full Load (mph)
Max Lift Speed Full Load (fpm)
Basic Right Angle Stack (in.)
Battery Voltage (V)
M10
2,200
1.9
N/A
N/A
24
* Based on 24″ Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.
Performance
24-Volt electrical system
AC drive motor with thermal protection & current limiting
Class “F” motor insulation
Transistor drive control system
Controller area network (CAN-bus) communication
Regenerative braking
Contactor-less drive controls
Ease of Service
One-piece High-Strength Service Cover
Error Indicator with Self-Diagnostics
Bolt-On Mast Mounting
Programmable Performance
Programmable Service Indicator
Battery Compartment: 27.3″L x 7.8″W x Open Height
Safety
Battery discharge indicator & correction with lift interrupt
Electric horn
Rugged, all-steel frame construction
Heavy duty bumpers
Emergency power disconnect switch
Safety glass mast guard
Ergonomics
Multifunction Control Handle with Ergonomically-Angled Hand Grips
