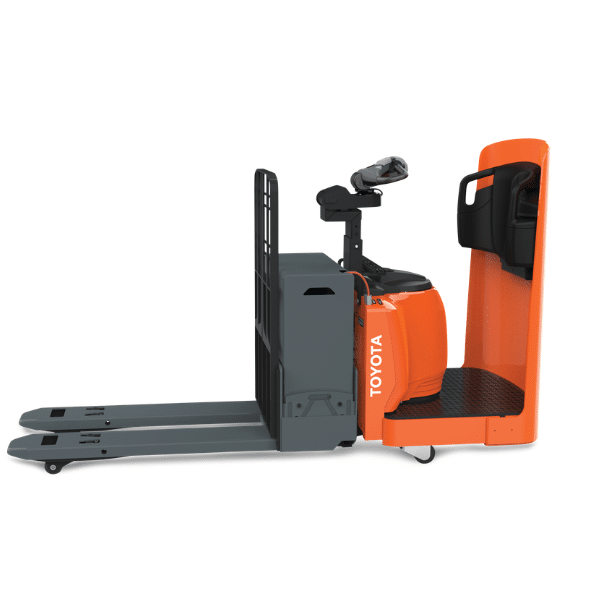

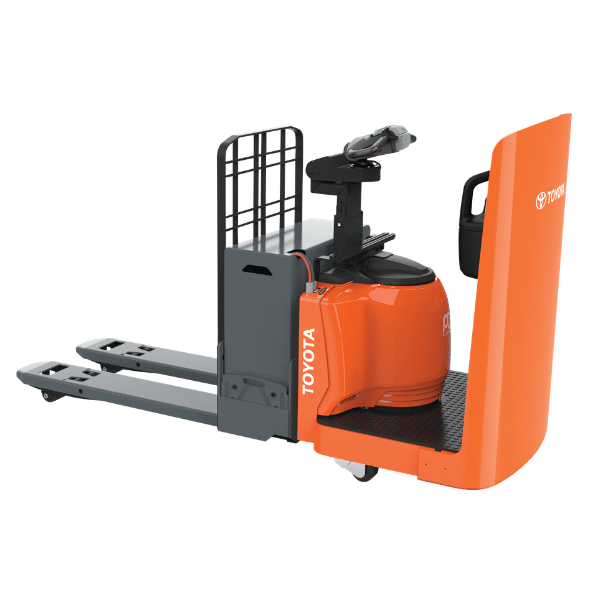

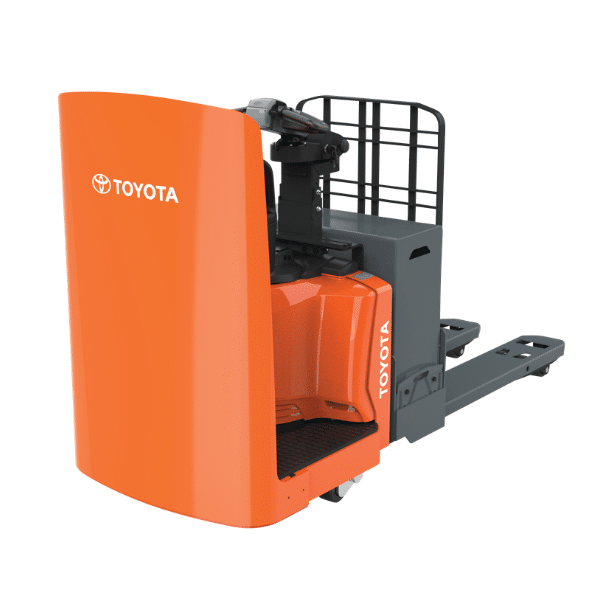

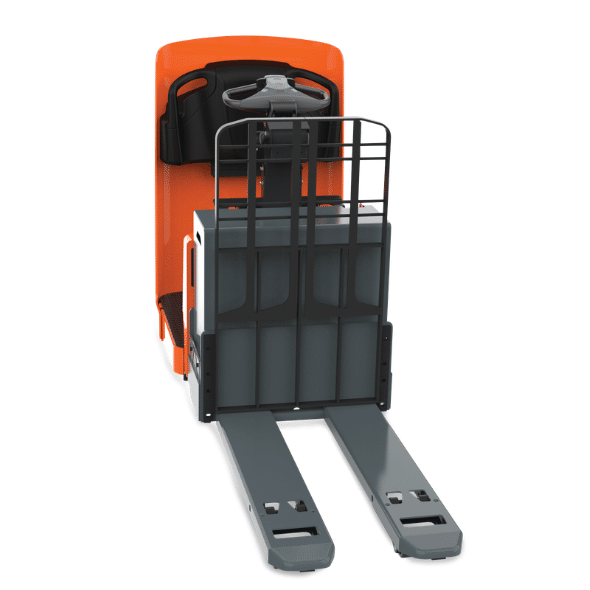

Toyota’s Side-Entry End Rider is ergonomically friendly, equipped with standard power steering, best-in-class turning radius, and easy pallet entry and exit, to get the job done. The Side-Entry End Rider assists operators with speed reduction in turns, making it easier to transport loads when cornering, ideal for a combination of applications. Trust Toyota’s Side-Entry End Rider to be the ideal truck for dock work, cross-warehouse hauling, and low-level order picking.
Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.
Model Number
Load Capacity* (lbs)
Max Travel Speed Full Load (mph)
Length (in.)
Max Gradeability Full Load (%)
Battery Voltage
ER1-EF60
6,000
6.5
81.5 – 148.8
8
24
ER1-EF80
8,000
6.5
88 – 196.4
8
24
* Based on 24″ Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.
Safety
Stability handrail with lift, lower, horn and high-speed functions
Wrap-around hand guard
Spring-loaded control handle
Runaway protection
Directional reverse switch on control handle
Electric horn
Ergonomics
Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
Dual thumb wheels with twist grips for directional control and travel speed
Intuitively positioned lift/lower and horn buttons (horn button on 8TB50 Only)
