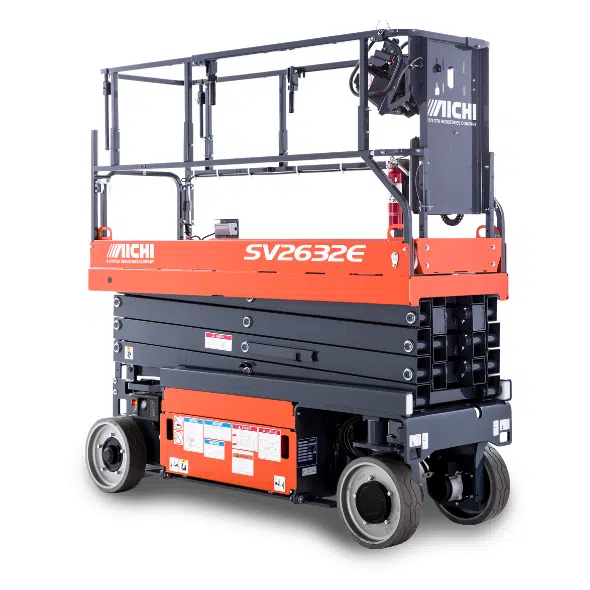

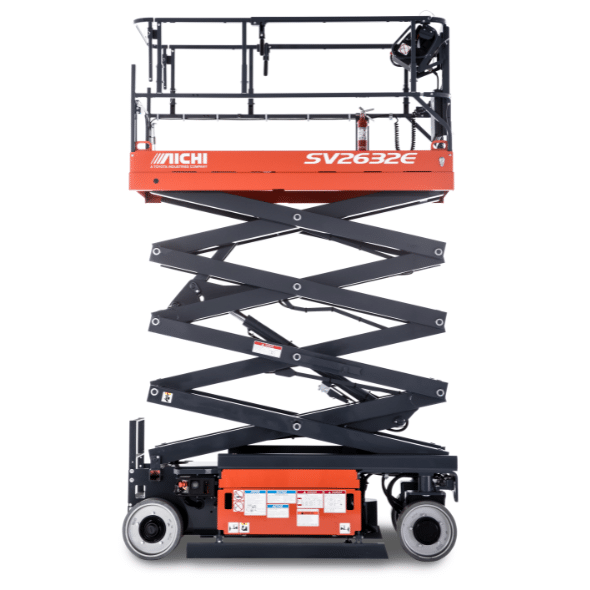

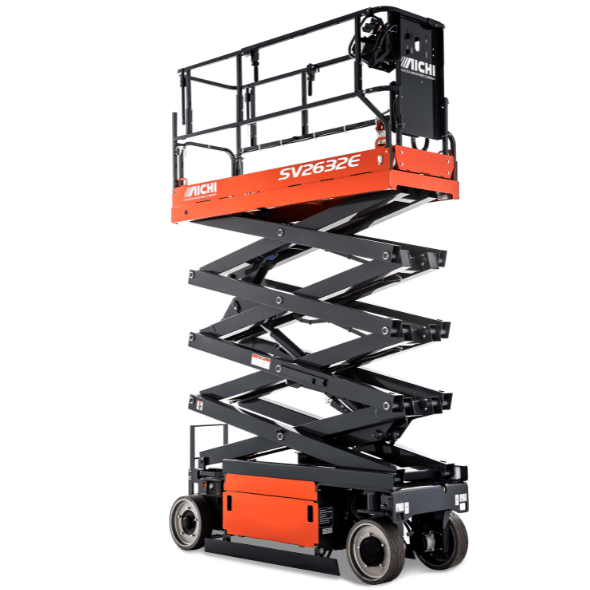

The AICHI E-Series Scissor Lifts can easily be used for multiple purposes between facilities maintenance, construction, plumbing, painting, and more. The E-Series Scissor Lifts can fit through a standard doorway and can reach working heights of 25, 26, 32, and 38 feet.
Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.
Model
Platform Height (ft.)
Platform Capacity At Lift Height
Platform Lift Time (sec.)
Platform Lower Time (sec.)
Overall Width (in.)
Sv1932E
19
505 lbs. at 228 in.
26
30
32.1
SV2032E
20
790 lbs. at 240 in.
28
40
31.9
SV2632E
26
505 lbs. at 307 in.
795 lbs. at 236 in.
33
37
31.9
SV2646E
26
705 lbs. at 382 in.
990 lbs. at 311 in.
40
50
46.1
SV3246E
32
705 lbs. at 382 in.
990 lbs. at 311 in.
55
60
46.1
* Based on 24″ Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.
Performance
AC drive motor with thermal protection & current limiting
24-Volt electrical system
Fault code memory with hour meter reading
Regenerative braking
Programmable performance
Adjustable maximum speed
Adjustable acceleration
On/off key switch
Multiple hour meter indicator
Battery discharge indicator
Fused control & power circuits
Ease of Service
AC drive motor (no brushes or commutator)
One-piece, lightweight service access cover
Error indicator with self-diagnostics
Self-adjusting electric disc brake
Safety
Wrap-around hand guard
Control handle with dual brake levers
Polyurethane torsion block stabilizing casters
Electronic horn
Ergonomics
Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
Dual thumbwheels with twist grips for directional control & travel speed
Intuitively positioned lift/lower & horn buttons
Adjustable height control handle (3-position); dual hand brake levers
Low-effort control handle
High-speed interlock button
Bubble-cushioned operator floor mat, padded backrest & knee pad
