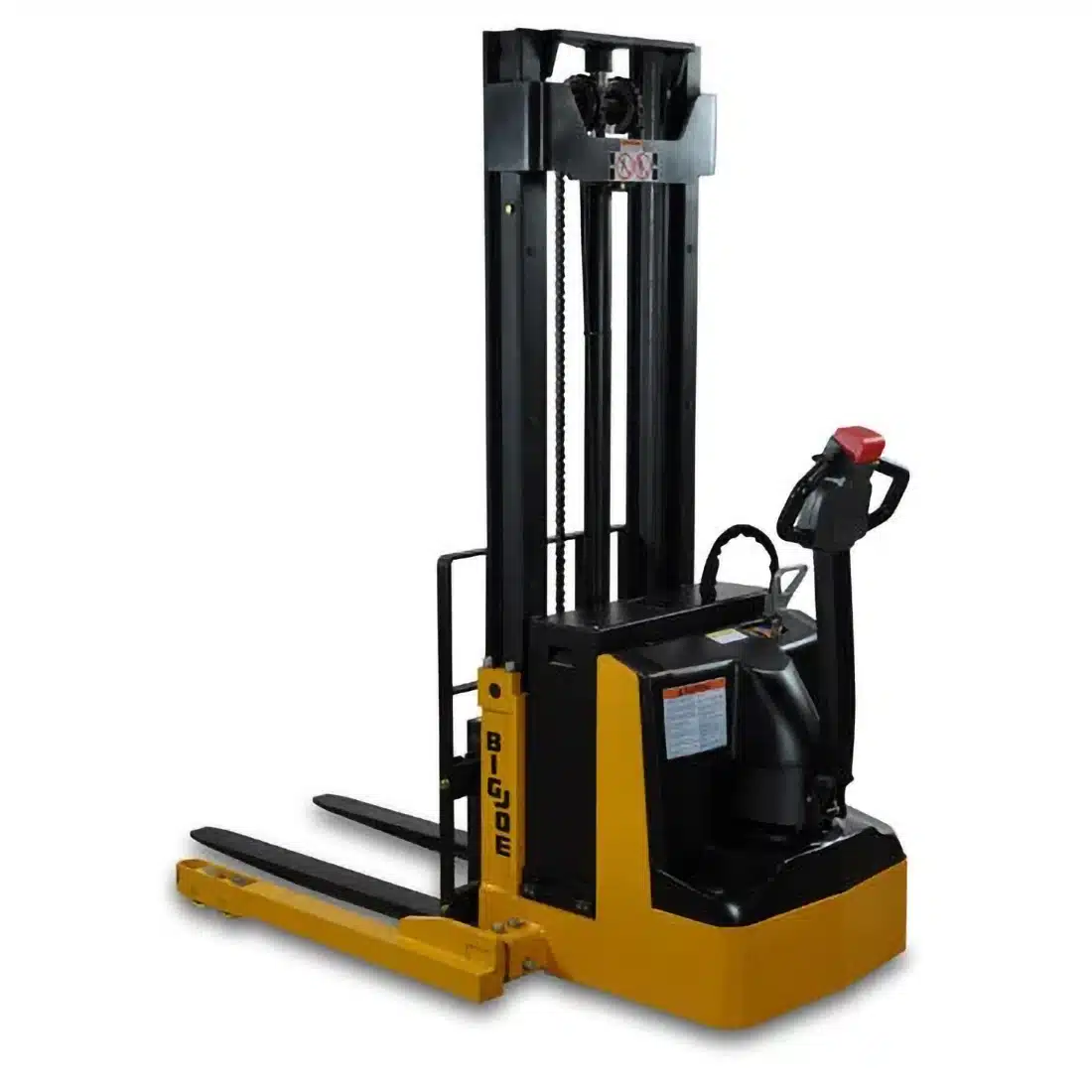

Big Joe PDS25 Stacker
2,500 lb. Power Drive Straddle Truck
2,500lb. capacity models with lift heights to 157″
An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.
| Vehicle Type | Walkie Straddle Stackers |
|---|---|
| Capacity | 2,500lbs. @ 24” load center |
| Power | 24 volt AC electric with ZAPI transistor control-inverter |
| Max Lift Height | Masts available up to 157″” |
| Collapsed Height | Masts available as low as 71″” |
| Fork Dimensions | 42″” L x 4″” W x 1.5″” Thick |
| Vehicle Dimensions | 64.5″” OAL x 44″” OAW |
| Turning Radius | 60.7″” |
| Travel Speed | Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded) |
| Battery Compartment | 26.37” x 9.06” x OPEN |
| Battery Capacity | 224AH Maintenance free battery pack |
| Charger | Integral to pack, 110v plug-in |
Product Highlights
- 24 volt ZAPI transistor control
- High torque AC drive motor
- Double reduction helical ZF GK10 transmission
- Shaft mounted electromechanical brake
- Creep speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- 224AH Maintenance free battery pack with integral charger
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
