S22-S22-R

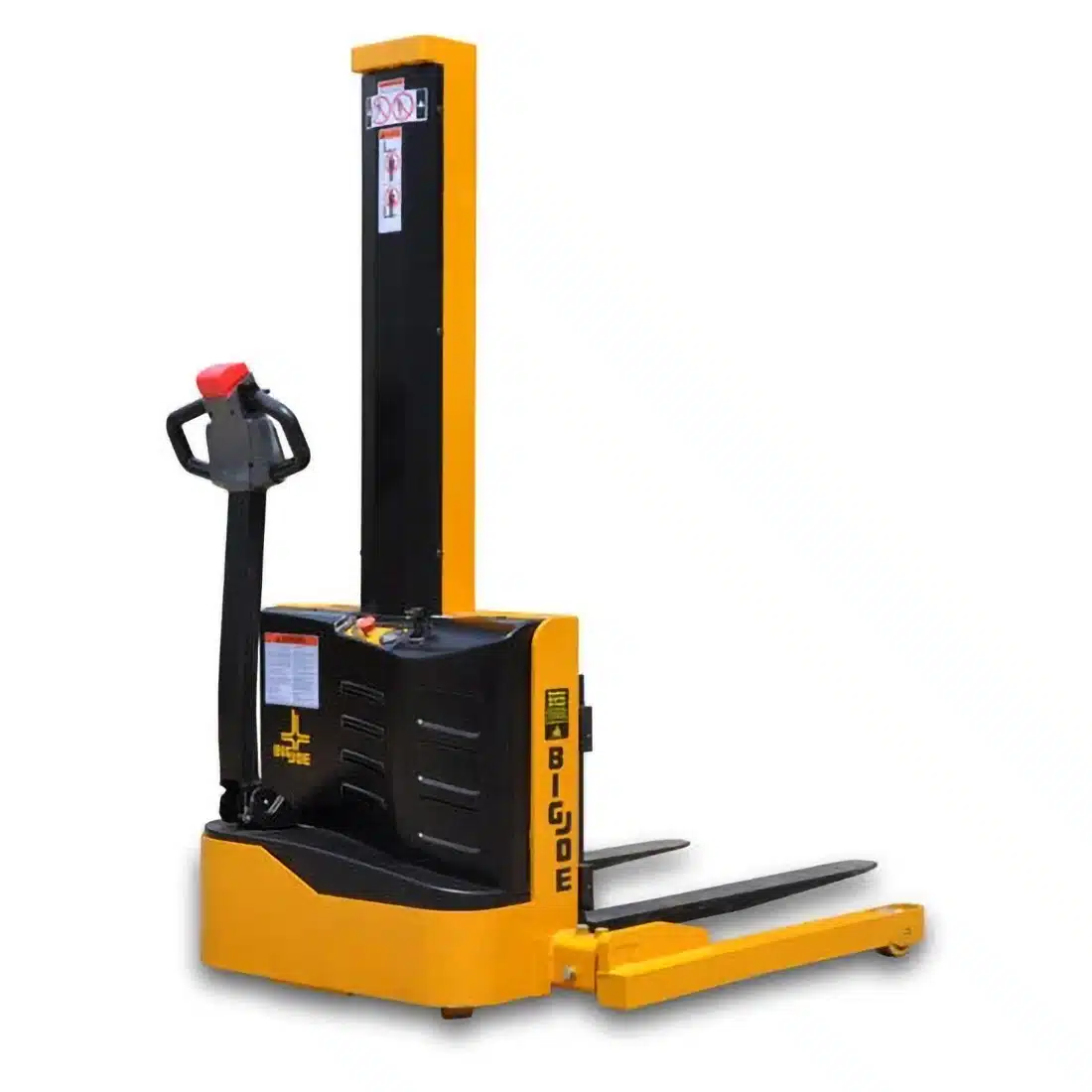

2,200 lb. Walkie Straddle Stacker
S22 2,200lb. capacity standard model with maximum lift heights from 62″”-116″.
S22-62R forkover model also available for use with skids, general work positioning and transportation.
| Vehicle Type | Walkie Straddle Stackers |
|---|---|
| Capacity | 2,200lbs. @ 24” load center |
| Power | 24 volt – S22 DC / S30 AC |
| Max Lift Heights | S22 62″”, 96″”, 116″” |
| Fork Dimensions | 42″” x 4″” x 1.5″” / S22-62R 45″” x 22″” |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | 2.5 mph |
| Battery Compartment | See specification sheet |
| Battery Capacity | S22 60AH to 85AH |
| Charger | Integral to pack, 110v plug-in |
Product Highlights
- 24 volt system
- High efficiency drive motors
- Adjustable straddles. S22-62R Fork over configuration available
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
