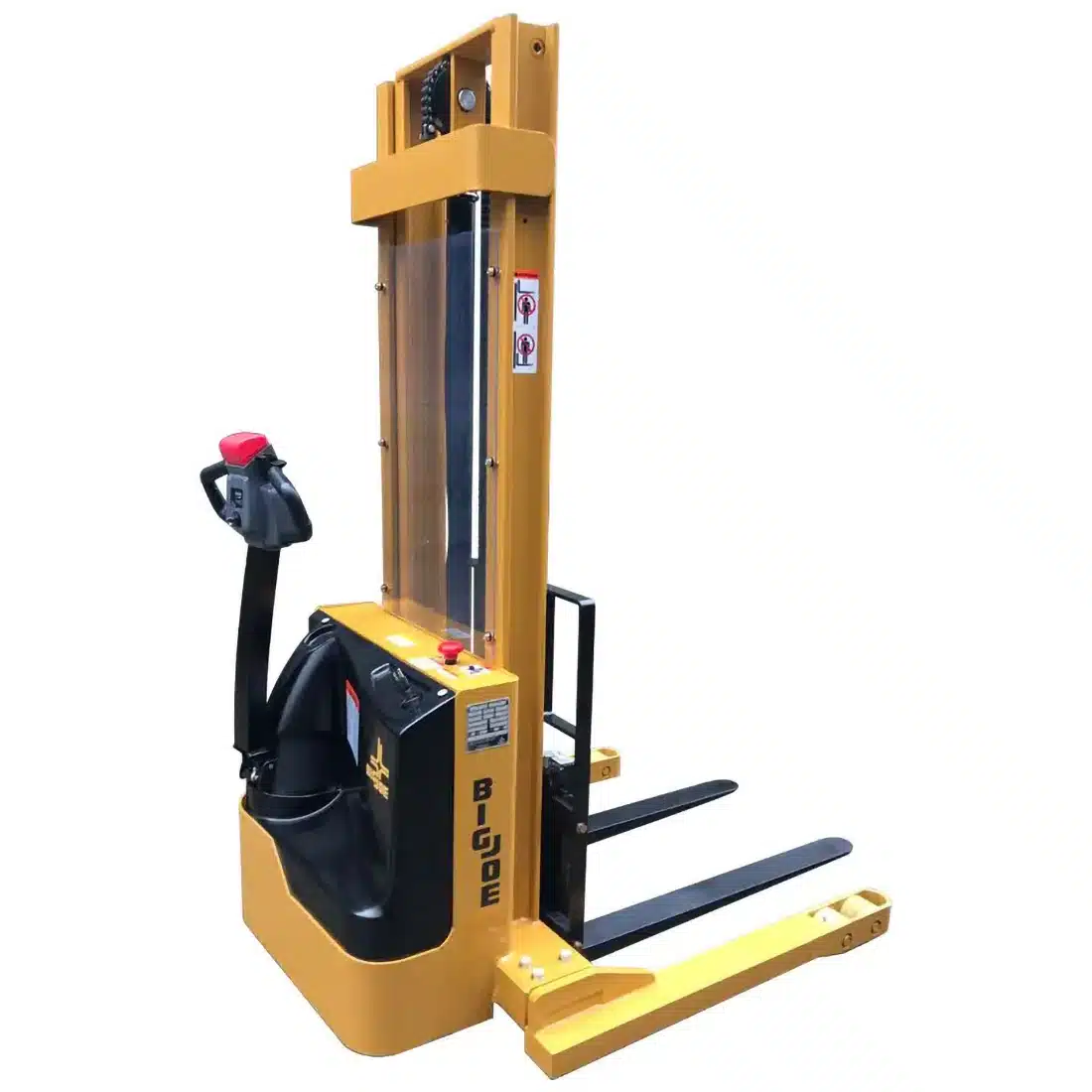

S30
3,000 lb. Walkie Straddle Stacker
S30 3,000lb. capacity model with a maximum lift height of 128″.
An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.
| Vehicle Type | Walkie Straddle Stackers |
|---|---|
| Capacity | 3,000lbs. @ 24” load center |
| Power | 24 volt – S22 DC / S30 AC |
| Max. Lift Heights | S30 128″” |
| Fork Dimensions | 42″” x 4″” x 1.5″” |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | 2.5 mph |
| Battery Compartment | Integral |
| Battery Capacity | 100AH |
| Charger | Integral to pack, 110v plug-in |
Product Highlights
- 24volt system
- High efficiency drive motors
- Adjustable straddles. S22-62R Fork over configuration available
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
