PDS30-40

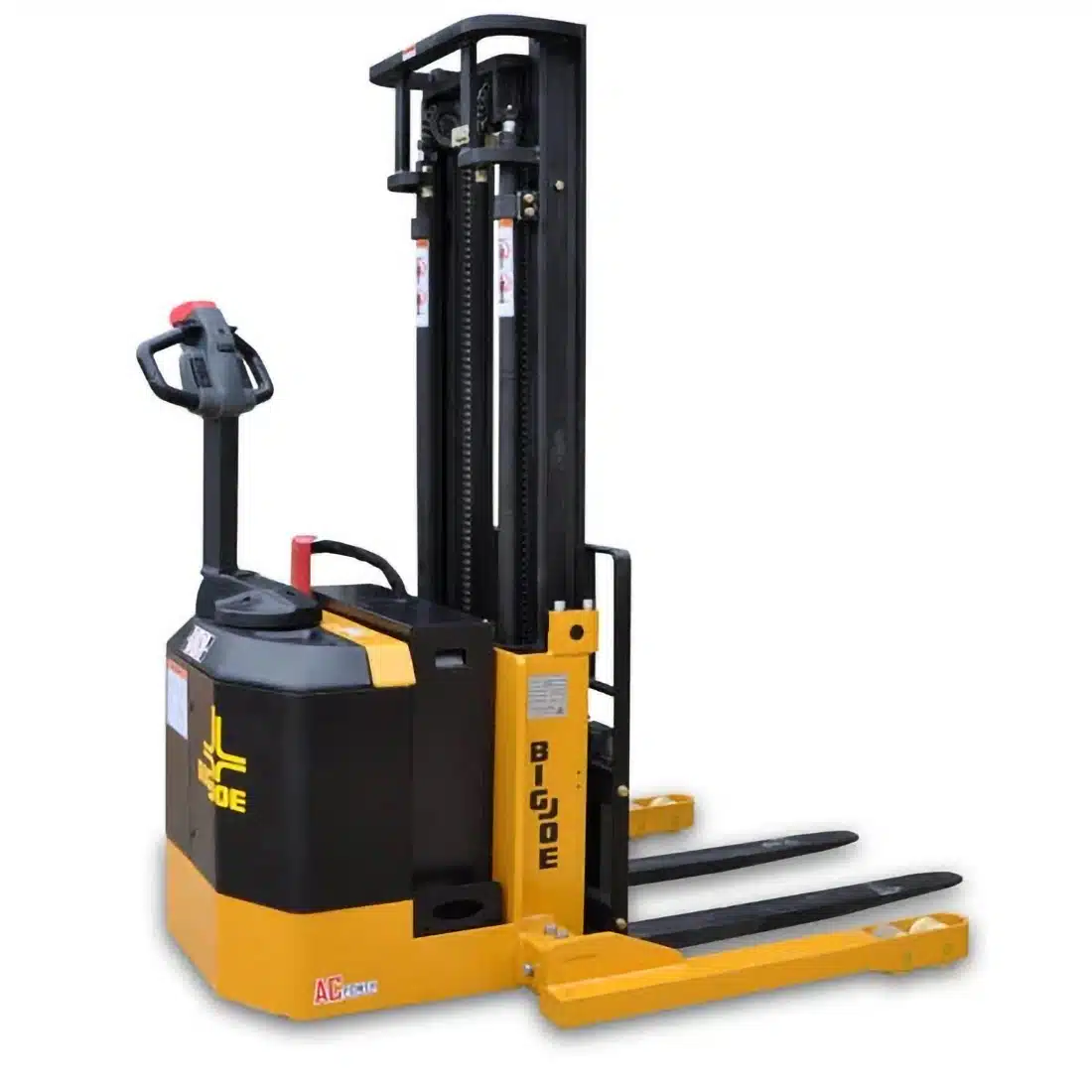

3,000 or 4,000 lb. Power Drive Straddle Truck
3,000lb and 4,000lb capacity models with lift heights to 177″
An easy to use and maintain truck that is a good choice for warehouse operations and other environments where space is limited.
| Vehicle Type | Walkie Straddle Stackers |
|---|---|
| Capacity | 3,000lbs./4,000lbs. @ 24” load center |
| Power | 24 volt AC electric with ZAPI transistor control-inverter |
| Max Lift Height | Masts available up to 177″” |
| Collapsed Height | Masts available as low as 71″” |
| Fork Dimensions | 42″” L x 4″” W x 1.5″” Thick |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded) |
| Battery Compartment | 26.37” x 9.06” x OPEN |
| Battery Capacity | 224AH Maintenance free battery pack |
| Charger | Integral to pack, 110v plug-in |
Product Highlights
- 24volt ZAPI transistor control
- High torque AC drive motor
- Double reduction helical ZF GK10 transmission
- Shaft mounted electromechanical brake
- Creep speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- 224 AH Maintenance free battery pack
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
